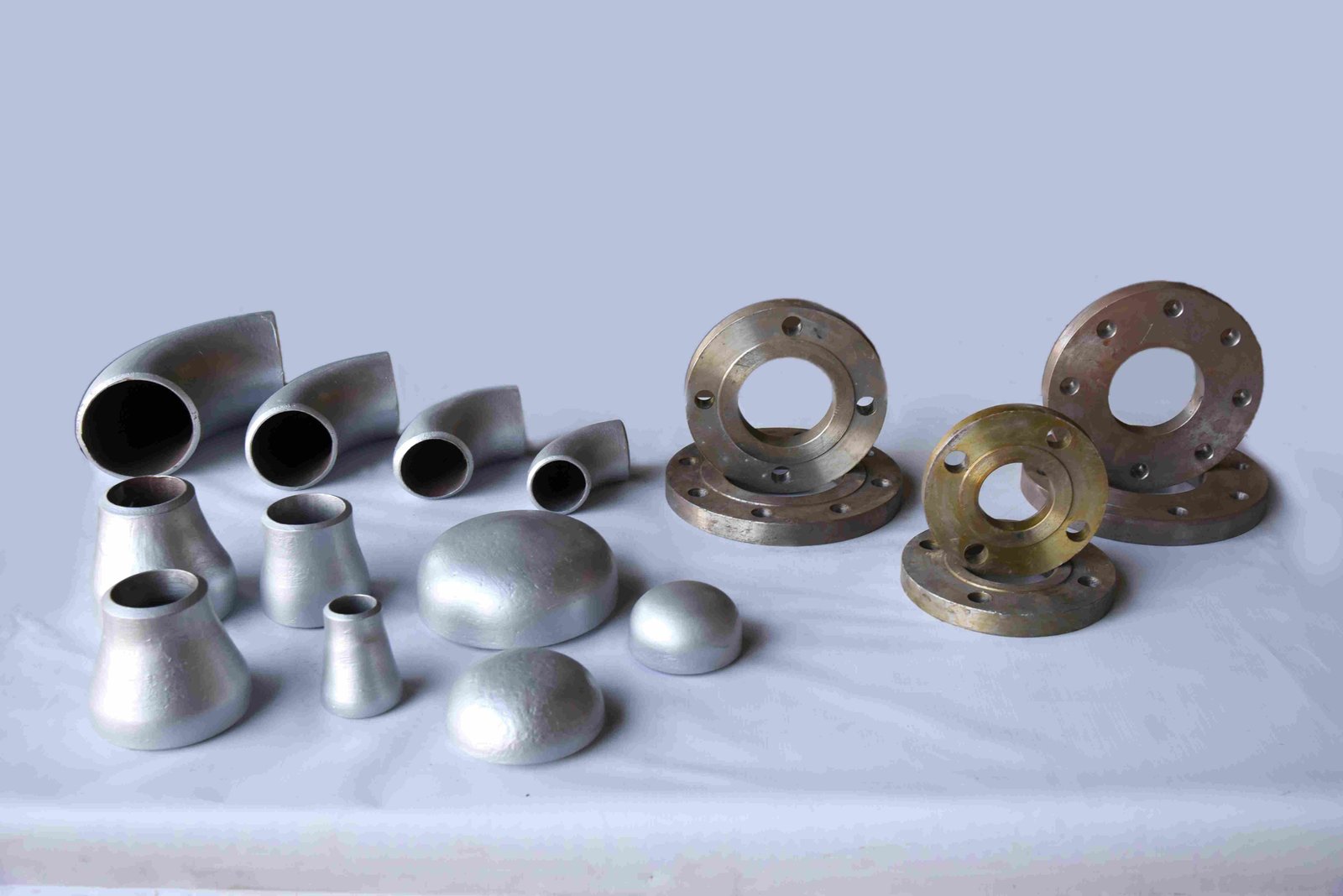

Pipe Fittings & HP Bends Manufacturer & Supplier India
IBR Form III-C Forged & Seamless High-Pressure Piping Components
Certified forged and seamless high-pressure pipe fittings engineered to withstand thermal cycling and pulsating hydraulic shock in power plant piping. Sourced with full mill traceability and certified under Indian Boiler Regulations Form III-C, our fittings ensure leak-free integrity across critical steam and feedwater circuits.
What is Pipe Fittings & HP Bends?
Pipe Fittings & HP Bends is an IBR 1950 certified boiler pressure component manufactured by Modern Boilers Pvt. Ltd. in Nagpur, Maharashtra. Certified forged and seamless high-pressure pipe fittings engineered to withstand thermal cycling and pulsating hydraulic shock in power plant piping. Sourced with full mill traceability and certified under Indian Boiler Regulations Form III-C, our fittings ensure leak-free integrity across critical steam and feedwater circuits.
Manufacturing & Engineering Parameters
Every component is designed, formed, and tested under strict adherence to the Indian Boiler Regulations 1950 and ASME Section I Power Boilers code.
| Material Grades | ASTM A105, A182 F11, F22, F91, SA234 WPB, WP11, WP22 |
| Pressure Rating | 3000#, 6000#, 9000# socket-weld & Class 150 to 2500 flanges |
| Fitting Types | Elbows (90°/45° LR/SR), Equal/Reducing Tees, Reducers, Flanges |
| Size Range | 15 mm NB to 600 mm NB (1/2" to 24") |
| End Connections | Butt weld (bevelled ends), socket weld, threaded NPT |
| Certification | IBR Form III-C statutory certificate included |
Industrial Applications & Boiler Types
- High-pressure steam interconnecting pipelines
- Boiler feedwater pump discharge and bypass lines
- Continuous blowdown and intermittent blowdown headers
Quality Control & NDT Testing
- 100% dimensional check and PMI (Positive Material Identification)
- Ultrasonic testing on all high-alloy forgings
- Stamped with heat numbers matching certified Mill Test Certificates
Direct heavy trailer dispatch from Nagpur MIDC to Chandrapur (3 hrs), Bhilai (6 hrs), Raipur (7 hrs), and Hazira (20 hrs).
Frequently Asked Engineering & Procurement Questions
Technical answers curated directly by our senior boiler design engineers for plant heads, O&M managers, and procurement teams.
Request Technical Quote & Drawing Review
Submit your tube schedule, drawing number, or replacement bill of quantities (BOQ). Our engineering desk in Nagpur provides commercial proposals within 4 business hours.
