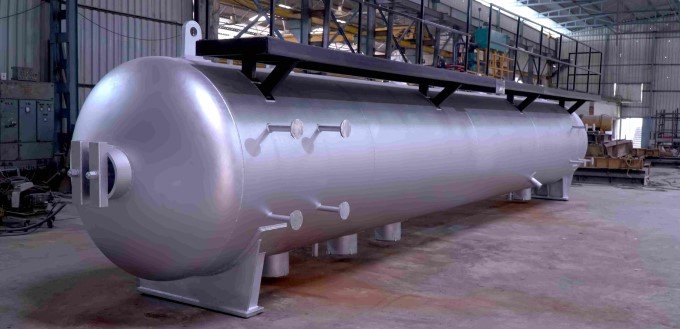

Steam Drum Manufacturer & Supplier India
Heavy-Duty Steam & Mud Drums with High-Efficiency Cyclone Internals
The primary phase-separation vessel for industrial boilers. Modern Boilers fabricates steam drums and mud drums with heavy ultrasonic-tested boiler quality plates, hot-formed ellipsoidal dished ends, and high-efficiency internal cyclone separators that guarantee 99.85%+ steam dryness fraction to prevent turbine blade erosion and superheater tube burnout.
What is Steam Drum?
Steam Drum is an IBR 1950 certified boiler pressure component manufactured by Modern Boilers Pvt. Ltd. in Nagpur, Maharashtra. The primary phase-separation vessel for industrial boilers. Modern Boilers fabricates steam drums and mud drums with heavy ultrasonic-tested boiler quality plates, hot-formed ellipsoidal dished ends, and high-efficiency internal cyclone separators that guarantee 99.85%+ steam dryness fraction to prevent turbine blade erosion and superheater tube burnout.
Manufacturing & Engineering Parameters
Every component is designed, formed, and tested under strict adherence to the Indian Boiler Regulations 1950 and ASME Section I Power Boilers code.
| Shell Material | SA516 Gr. 70, SA299, SA387 Gr. 11/22 BQ plates |
| Plate Thickness | 25 mm up to 90 mm hot-rolled and welded |
| Internal Diameter | 900 mm to 2200 mm ID |
| Drum Length | Up to 14 meters continuous length |
| Internal Separators | Multi-cyclones, chevron mist demisters, dry pipe |
| Feedwater Internals | Perforated distribution header with thermal sleeve |
| Stress Relieving | Full post-weld heat treatment (PWHT) in calibrated furnace |
| NDE Examination | 100% Radiography (RT) / TOFD on all longitudinal and girth welds |
Industrial Applications & Boiler Types
- High-pressure captive power plants and utility steam generators
- Process boilers requiring ultra-dry saturated steam
- Replacement drums for aged or stress-corroded boiler plants
Quality Control & NDT Testing
- Tube holes precision drilled on CNC multi-spindle radial drilling machines
- Tube seat grooving performed to exact IBR tolerances
- Form III-B statutory certificate issued by Central Boilers Board Inspectorate
Direct heavy trailer dispatch from Nagpur MIDC to Chandrapur (3 hrs), Bhilai (6 hrs), Raipur (7 hrs), and Hazira (20 hrs).
Frequently Asked Engineering & Procurement Questions
Technical answers curated directly by our senior boiler design engineers for plant heads, O&M managers, and procurement teams.
Request Technical Quote & Drawing Review
Submit your tube schedule, drawing number, or replacement bill of quantities (BOQ). Our engineering desk in Nagpur provides commercial proposals within 4 business hours.
