Water Wall Panels Manufacturer India | Membrane Water Walls
100% Gas-Tight Membrane Panels with Automated Fin-to-Tube Welding
Membrane water wall panels form the perimeter combustion chamber of modern water-tube boilers. Fabricated on our automatic submerged-arc welding (SAW) gantries, our gas-tight panels eliminate fugitive flue gas egress, lower refractory maintenance costs, and provide maximum radiant evaporative surface area for rapid steam generation.
What is Water Wall Panels?

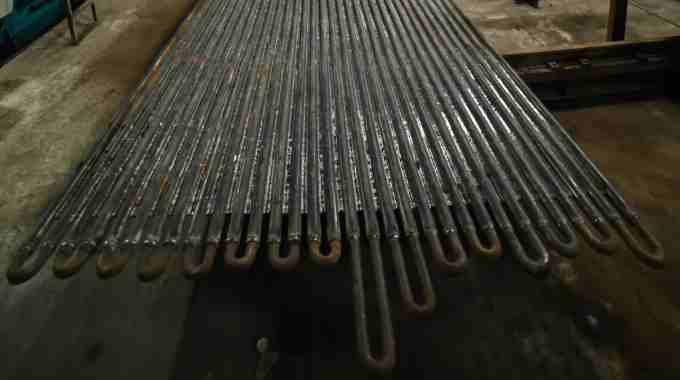

Water Wall Panels (membrane water walls) form the perimeter furnace combustion envelope of high-pressure industrial and power boilers. Modern Boilers Pvt. Ltd. fabricates 100% gas-tight membrane water wall panels up to 12 meters long by 1.8 meters wide on automated twin-wire submerged-arc welding (SAW) gantries. Fabricated with ASTM SA210 Grade A1 / SA106B seamless tubes and IS 2062 / SA387 Gr. 11 membrane flat bars, our water walls prevent flue gas egress, eliminate heavy refractory maintenance, and maximize furnace radiant heat absorption with certified IBR Form III-A inspection.
Manufacturing & Engineering Parameters
Every component is designed, formed, and tested under strict adherence to the Indian Boiler Regulations 1950 and ASME Section I Power Boilers code.
| Tube Metallurgy | ASTM SA210 Gr. A1, SA106-B seamless cold drawn |
| Fin Bar Metallurgy | IS 2062 Gr. B / SA387 Gr. 11 flat bar |
| Tube Diameters | 50.8 mm to 76.2 mm OD |
| Tube Center Pitch | 63.5 mm to 100 mm pitch |
| Panel Dimensions | Up to 12 meters length × 1.8 meters width |
| Fin Welding Method | Twin-wire submerged arc continuous full-penetration |
| Straightness Tolerance | < 3 mm deviation over full 12-meter span |
| Openings & Bends | Pre-fabricated burner openings, manholes, and sootblower ports |
Industrial Applications & Boiler Types
- Utility boiler furnace walls (front, rear, sidewalls, and roof arch)
- AFBC and CFBC refractory transition enclosures
- Modular pre-assembled panels for fast field erection
Quality Control & NDT Testing
- Macro-etch cross section testing to confirm 100% weld throat penetration
- Hydraulic pressure test up to 200 kg/cm² prior to site dispatch
- Delivered with factory-welded buckstay attachments and lifting lugs
Direct heavy trailer dispatch from Nagpur MIDC to Chandrapur (3 hrs), Bhilai (6 hrs), Raipur (7 hrs), and Hazira (20 hrs).
